Transform your Celica's headlights with custom angel eye rings that create a distinctive halo lighting effect. Angel eyes are reflective rings that illuminate to provide an aggressive, modern appearance reminiscent of BMW's signature lighting. This advanced modification requires headlight disassembly and precise installation for professional results.

🚨 Advanced Modification Warnings

• Headlight damage risk: Boiling water method can crack headlight housing if done incorrectly
• Heat gun safety: High temperatures required - eye protection and ventilation essential
• Electrical safety: Proper LED resistor calculations required for longevity
• Waterproofing critical: Improper sealing will cause condensation and electrical failure
• Front bumper removal: Required for headlight access - complex procedure

Required Materials & Tools

🔧 Pre-Installation Requirements

Note: This tutorial assumes angel eye rings are pre-fabricated. See referenced external guide for ring construction details.

Step 1: Headlight Removal & Access

Vehicle disassembly:

• Remove front bumper assembly for headlight access
• Disconnect headlight wiring harnesses
• Remove high beam headlight (or low beam if preferred)
• Work in clean, well-lit area for precision work

Installation planning:

• Decide between high beam or low beam installation location
• High beam typically provides better angel eye visibility
• Consider wiring routing and accessibility

Step 2: Headlight Housing Opening

Boiling water method:

• Fill large pot with water and bring to rolling boil
• Completely submerge headlight glass portion underwater
• Boil for 20 minutes to soften adhesive sealant
• Use tongs to handle hot headlight safely

Careful separation:

• Remove headlight from boiling water using protective equipment

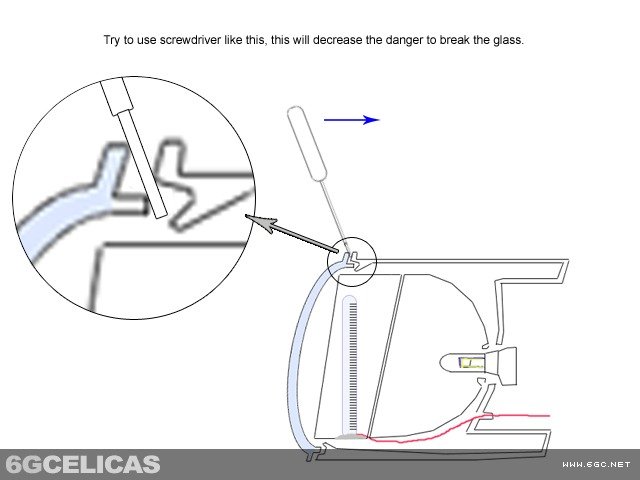

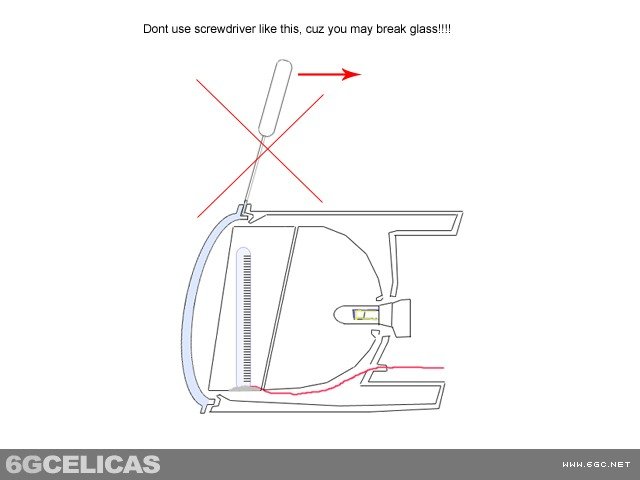

• Use flat screwdriver to carefully separate glass from housing
• Work slowly to avoid cracking glass
• If resistance encountered, re-boil for additional 20 minutes

Step 3: Internal Ring Removal & Preparation

Internal component access:

• Locate internal plastic ring inside opened headlight housing
• Remove three Phillips head screws securing ring
• Carefully extract plastic ring without damaging surrounding components
• Clean ring surface for optimal adhesive bonding

Angel eye positioning:

• Mark precise placement location for angel eye ring on plastic ring
• Ensure positioning provides optimal light distribution
• Consider clearance for bulb and electrical connections
• Test-fit angel eye ring before permanent attachment

Step 4: Angel Eye Ring Installation

Permanent mounting:

• Apply hot glue gun adhesive to marked position on plastic ring
• Alternative: Use clear silicone adhesive for more permanent bond
• Press angel eye ring firmly into position
• Ensure ring sits flush and level for professional appearance

Wiring preparation:

• Route angel eye wiring through headlight's water drainage opening
• Ensure adequate wire length for external connections
• Plan routing to avoid interference with bulb operation
• Leave excess wire for later trimming during final installation

Step 5: Headlight Reassembly

Component reinstallation:

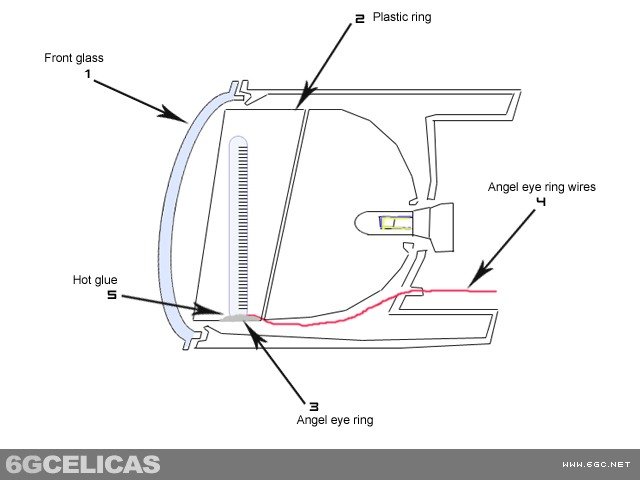

• Reinstall modified plastic ring with angel eye into headlight housing
• Secure with original three Phillips head screws
• Verify ring positioning and angel eye alignment
• Check for any interference with internal components

Glass reattachment:

• Clean both glass and housing surfaces thoroughly
• Use heat gun to soften original adhesive sealant
• Press glass firmly against housing ensuring proper alignment
• Apply pressure for several minutes to ensure air-tight seal

Step 6: Electrical Connection & Testing

Electrical integration:

• Connect angel eye wiring to parking light circuit
• Alternative: Install dedicated switch for manual control
• Include 220 ohm resistor for LED longevity
• Use proper electrical connectors for reliable connections

Final installation:

• Reinstall modified headlight into vehicle
• Reconnect headlight wiring harnesses
• Test angel eye operation and headlight functionality
• Reinstall front bumper assembly

🎯 Angel Eye Results

📸 Installation Process Gallery

💡 Pro Tips

• Glass handling: Work slowly and carefully - headlight glass replacement is expensive
• Sealing quality: Proper reassembly critical to prevent condensation and water damage
• LED resistors: Use proper resistor values to prevent LED burnout and ensure longevity
• Ring fabrication: Take time to create quality angel eye rings - they determine final appearance
• Test fitting: Dry-fit everything before applying permanent adhesives
• Wiring protection: Route wires away from moving parts and heat sources

🔗 Additional Resources

This tutorial covers the installation process for pre-made angel eye rings. For detailed instructions on creating the angel eye rings themselves from clear acrylic rod, refer to external fabrication guides available online. Ring creation involves precision cutting, shaping, and LED integration techniques.
